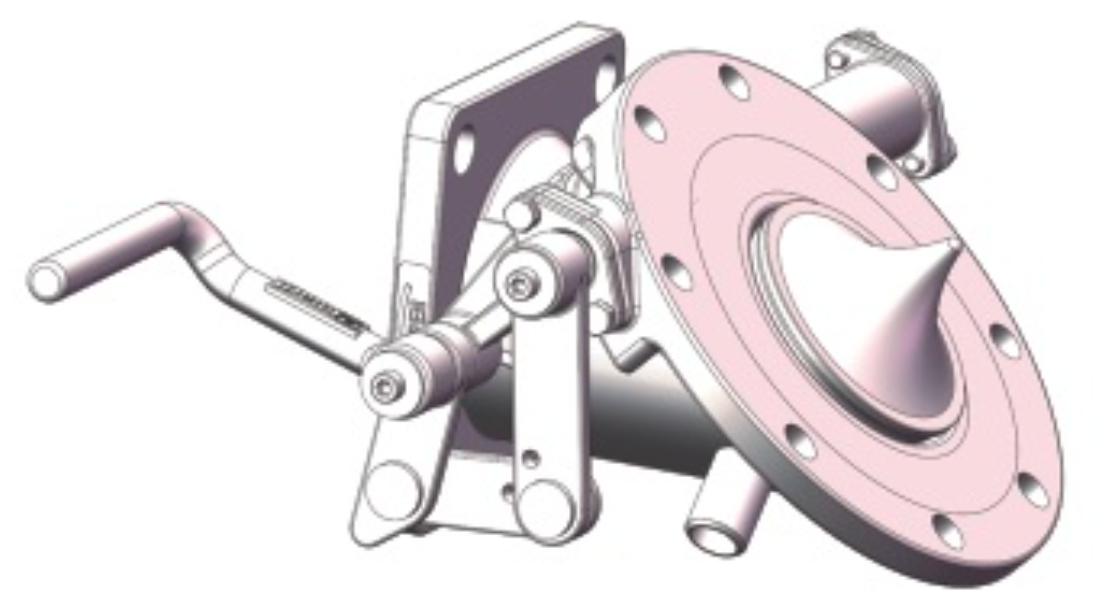

3" 45° Quick Flow Manual Bottom Valve

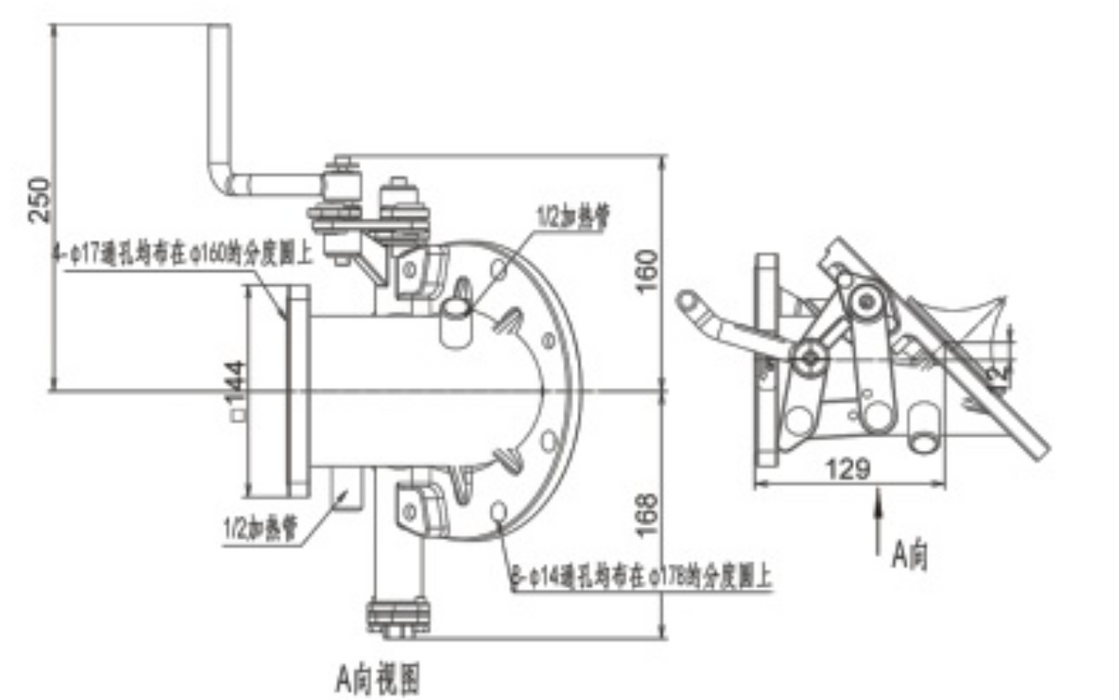

3" 45° Quick Flow Manual Bottom Valve (Special Versions) – Inlet Flange
drilled with 8 × Ø14 mm holes, equally spaced on a pitch circle diameter (PCD) of Ø178 mm.
The outlet flange is drilled with 4 × Ø17 mm holes, equally spaced on a pitch circle diameter (PCD) of Ø160 mm.
The Quick Flow bottom valve is equipped with a complete heating system, allowing the valve body to be heated to the maximum extent. This ensures optimum use of the heating function of the valve body.
The main seal is fitted with an imported O-ring seal.
